Temporary Construction Business
Japan's No.1 technology that has dramatically changed the steel column erection process
The innovative Japanese technology “ACEUP” or the TATEKATA ACE wireless column erection method provided by TECHNOS is a pioneering technology that has revolutionized the entire constructing industry.
Our engineers, led by three first-class architects, work closely together with our sales, maintenance, receiving, and shipping staff to quickly respond to a wide variety of customer requests and provide them with the best services. Since the product's inception, we have consistently offered outstanding services in terms of quality, safety, cost, and construction period, and have already achieved over 9,500 construction sites where ACEUP was used. With the introduction of related new products such as TATEKATA HELP and TATEKATA KING series, the ACEUP is taking on the new challenge of further revolutionizing the construction world as a pioneer of the wireless column erection method.
ACEUP (Steel Frame Erection Jigs)
*ACEUP is a registered trademark of TECHNOS.

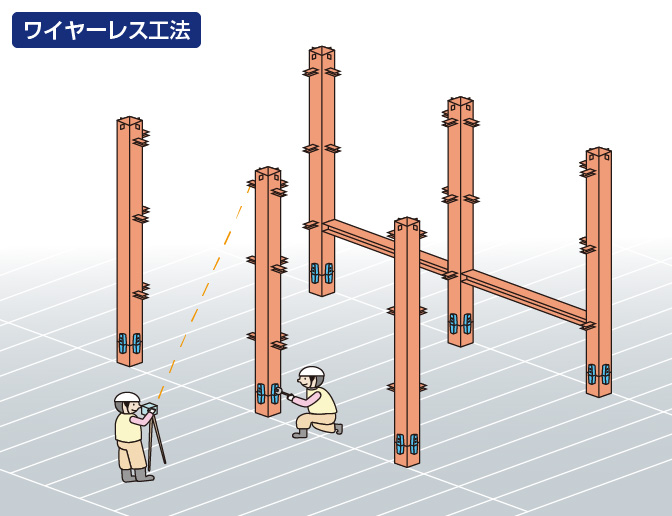

What is the wireless column erection method?

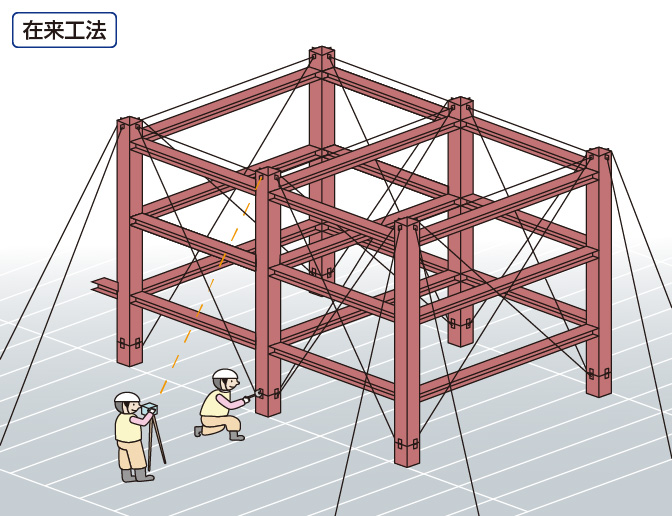

The ACEUP wireless column erection method allows steel column erection without using conventional erection methods such as splice plates and distortion correction wires. It is superior to the traditional methods in terms of quality, cost, construction period and safety (QCDS).
- Improved Quality
- As each column can be adjusted independently, it is easy to ensure accuracy.
- Unlike conventional erection methods using wires, ACEUP can get the main construction work done without putting pressure on the columns.
- Cost Reduction
- ACEUP eliminates the need for conventional distortion correction wires and operations.
- The number of construction workers can be reduced.
- Shorter Construction Period (Early Delivery)
- The time required for erecting columns can be significantly reduced.
- High accuracy in erecting columns reduces the time required for beam insertion.
- The construction period can be shortened because the amount of work per day can be increased.
- Improved Safety
- ACEUP reduces work at height, and eliminates the hazardous work of re-straining.
*The examination of its self-sustaining is required in advance.

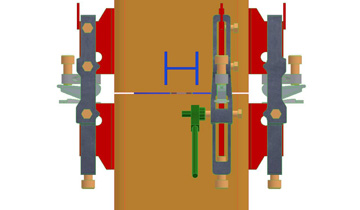

ACEUP Overall
Introduction of ACEUP

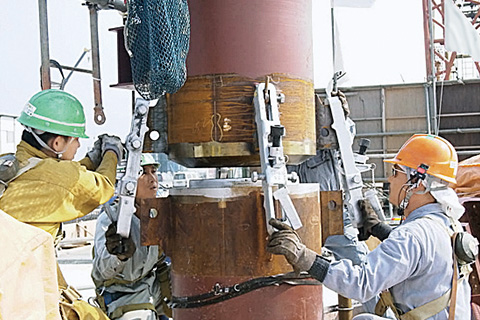

- TATEKATA ACE
- TATEKATA BASE
- TATEKATA HELP
- ERECTION PIECE (EP)

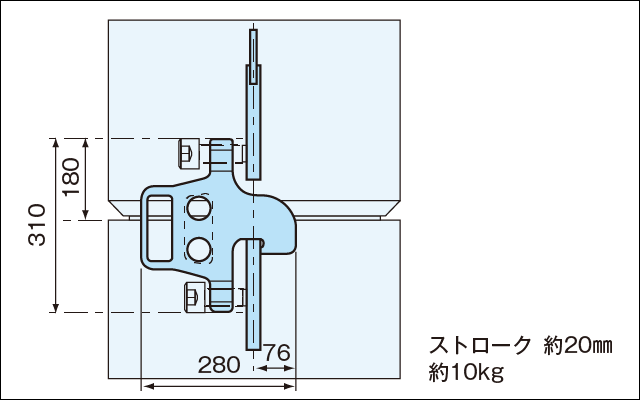

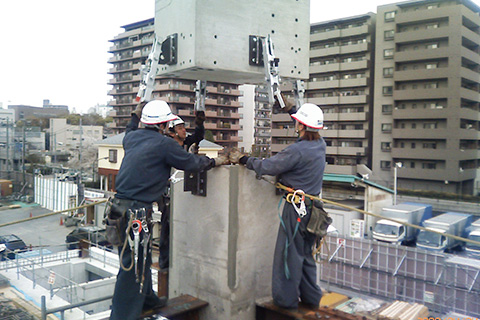

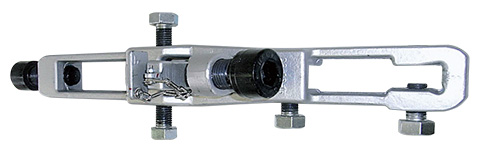

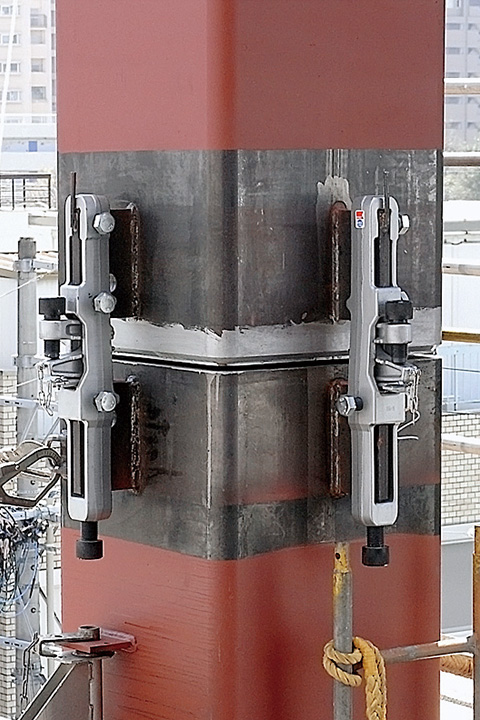

This device is used at the column joint location to connect the steel column.
Functions
- Guide function (quick crane release)
- Fall prevention
- Misalignment adjustment
- Tilt angle adjustment
- Level adjustment
- It can be also used upside down.
Characteristics
- TECHNOS' unique cam arm mechanism adjusts a tilt angle of column with only a slight force.
- Compared to conventional construction methods, splice plates, strain wires, pieces, etc. can be omitted.
Weight: Approx. 15kg
Technical documents are available.
Please contact us if you need the data.

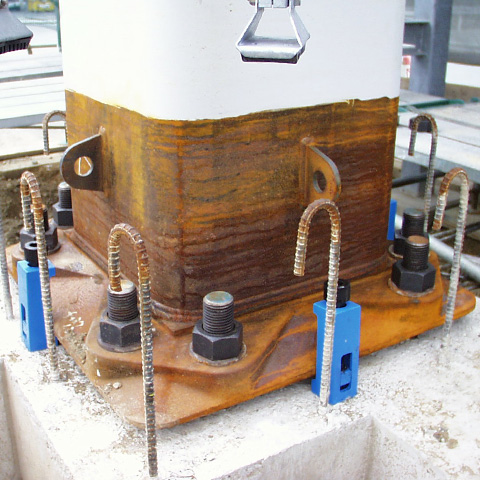

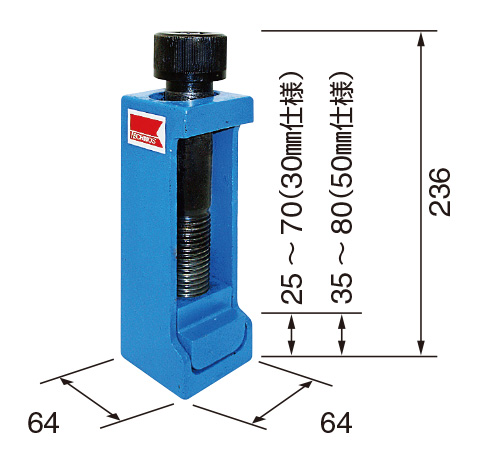

This device is used for the base of steel columns.
Function(s)
- Tilt angle adjustment
Characteristic(s)
- It has a simple structure and it is easy to handle.
- It is safer due to its manual operation.
*Available for two types of base mortar; 30 mm high and 50 mm high.
Weight: Approx. 4kg

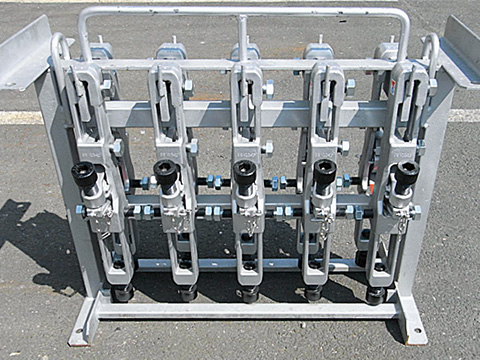

Special Storage Box

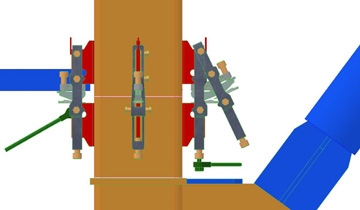

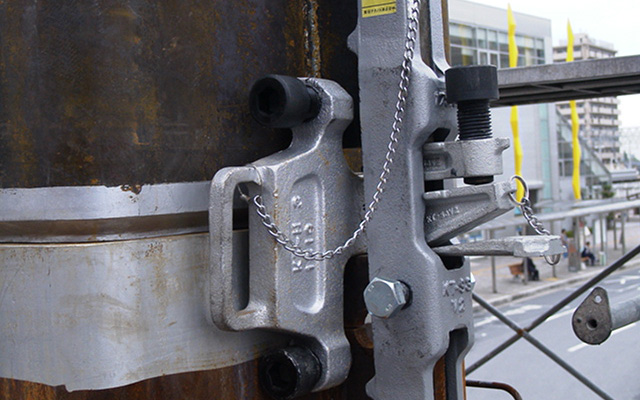

This equipment adjusts the misalignment that occurs after the insertion of the beam.
Function(s)
- Powerful misalignment adjustment function (TATEKATA ACE also has this function.)
Characteristic(s)
- This device is used as a complement to TATEKATA ACE.

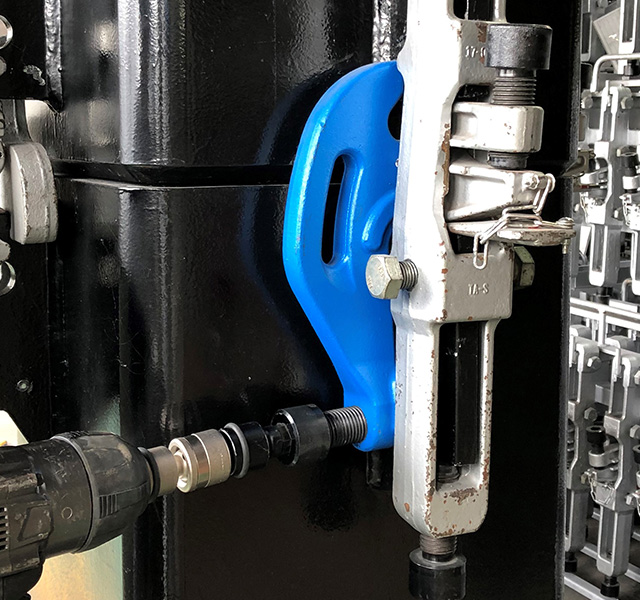

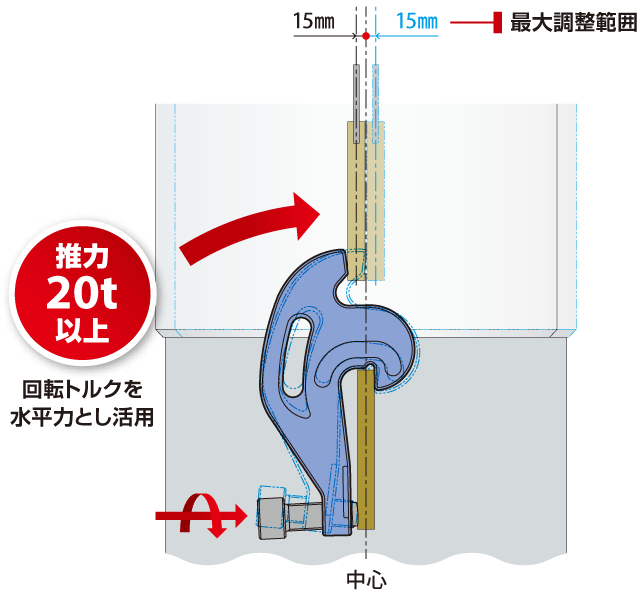

TATEKATA HELP ST
Double thrust and 20% of weight reduction compared with a conventional type.
- It uses the leverage mechanism to achieve efficient misalignment adjusting function.
- Efficient misalignment adjustment is possible without worrying about bending or damage of the erection piece.
- Light; due to its compact design (approx. 8kg)
Conventional TATEKATA HELP

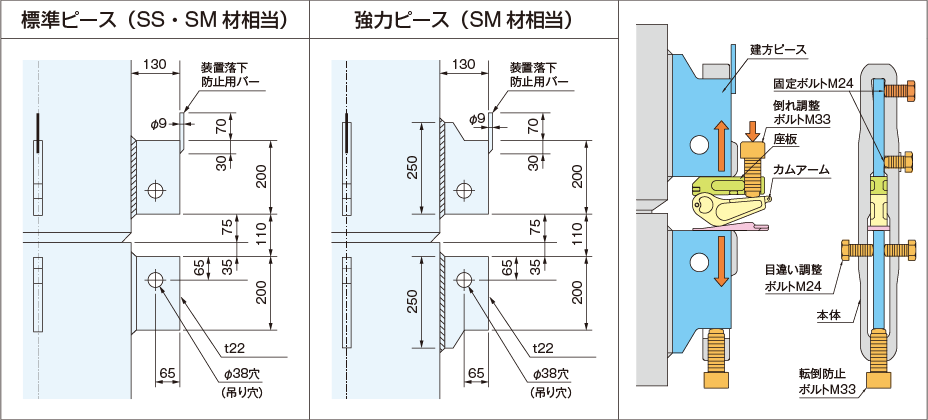

A specific erection piece that allows the correct placement of the TATEKATA ACE into the steel column.
Function(s)
- Vertical/horizontal force transmission and guide function at the joint
- Fall prevention of ACEUP
- Hanging piece
Characteristic(s)
- Fixes TATEKATA ACE into the correct position
- Ensures the safest utilization of ACEUP
- *Please contact us for more information about the combined use of PLYER which is used for steel core of inverted construction system, and TATEKATA ACE
- *Further consideration is needed before the use of this product

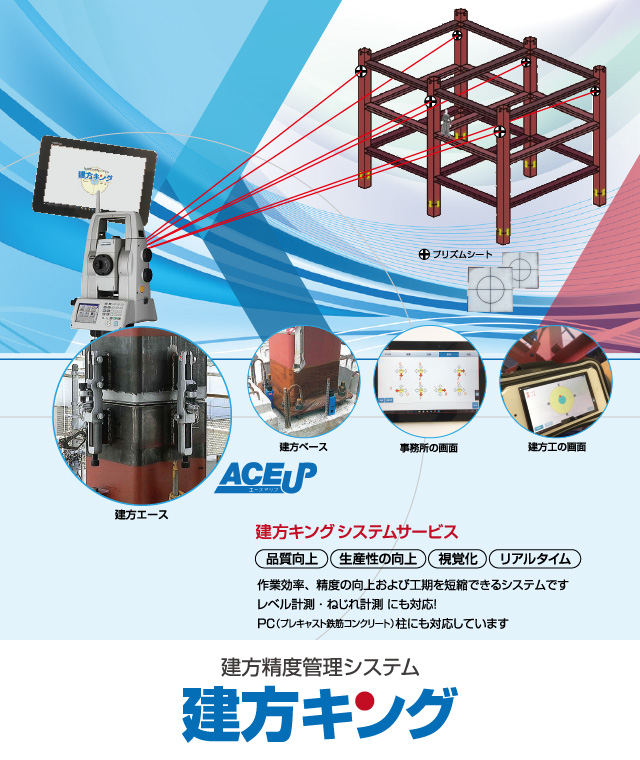

「TATEKATA KING」(Building Accuracy Control System)
TATEKATA KING is a building accuracy control system that uses 3D measurement system and ACEUP to make it efficient. Using its original functions, TATEKATA KING can visually displayed measurement data in graphical and numerical in real-time.
The measurer, erector, and site officer can share the measurement data on screen to manage erection work without time-lag.
4 Reasons Why TATEKATA KING Is Chosen
- 1Improved Quality
- 3D measurement system enables high-precision construction management.
- 2Improved Productivity
- Compared to the conventional erection method, the construction period can be significantly reduced.
- 3Visualization of work
- Easy-to-understand display of measurement differences with charts and numbers on mobile devices.
- 4Real-time Operation
- Screen sharing by mobile devices enables management without time-lag in construction.
By using TATEKATA KING...
Improves work efficiency and accuracy, and shortens the construction period!
*This system is jointly developed by Kinsoku Co., Ltd., Kinki University, and TECHNOS CO., LTD.
Patent Registration No. 6433033
NETIS Registration KK180058-A

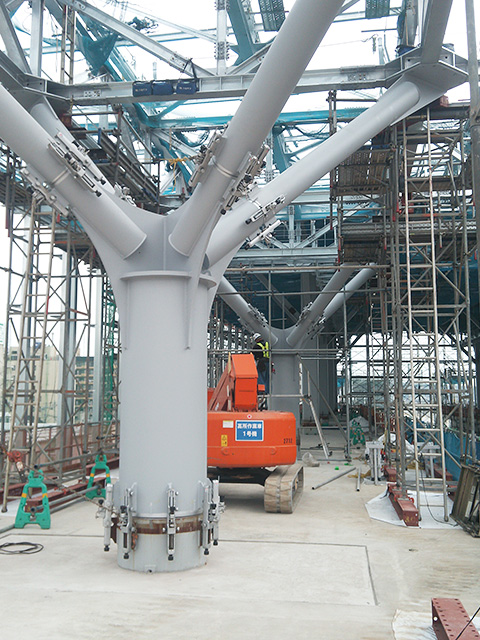

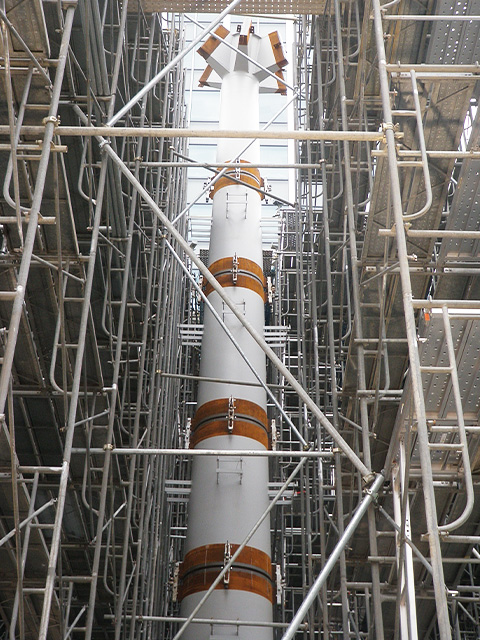

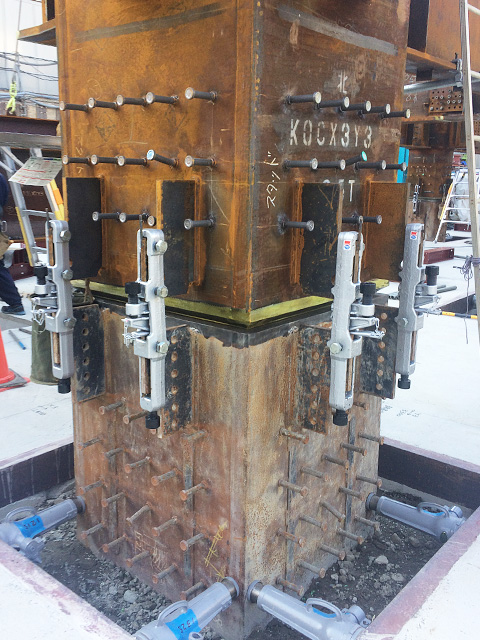

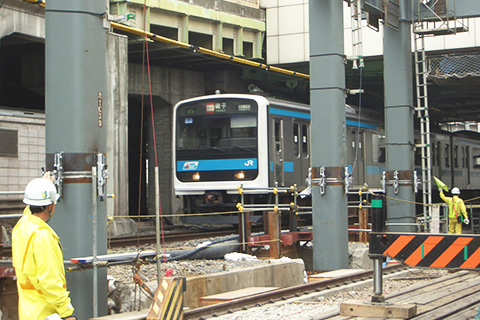

Examples of buildings that have used TATEKATA ACE
